Large stampings and thick composite layups don’t forgive uneven force — one side cures or forms a fraction slower than the other and the part is scrap. That’s the problem this 1000 ton dual cylinder hydraulic press is built around: two 500-ton cylinders working in perfect sync, a closed-loop hydraulic circuit that holds pressure steady shot after shot, and a 1600×1200mm table big enough for oversized molds and panels.

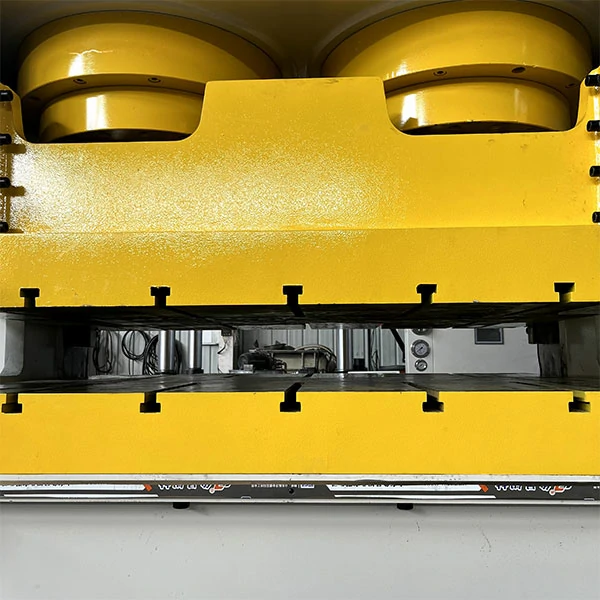

1000-ton dual-cylinder press with synchronized force output and 1600×1200mm worktable.
Inside the 1000 Ton Dual Cylinder Hydraulic Press
The frame follows the same rugged logic as our four column hydraulic press platform, but the cylinder arrangement is what sets this model apart. Instead of one large ram doing all the work, two independent 500-ton cylinders share the load and stay synchronized throughout the stroke — which matters a lot once you’re stamping panels or drawing deep parts where a stroke that’s off by even a millimeter on one side shows up as thinning or wrinkling on the finished piece. Pair that with a closed-loop hydraulic press design, and the oil circuit stays sealed rather than open to air, so pressure holds steady instead of drifting mid-cycle.
What You’re Actually Getting
◆ Sealed circulation
Closed-loop oil circuit cuts leakage and lifts pressure stability by roughly 30% over open systems.
◆ Light curtain safety
Infrared curtains stop the ram the instant a hand or tool crosses the danger zone.

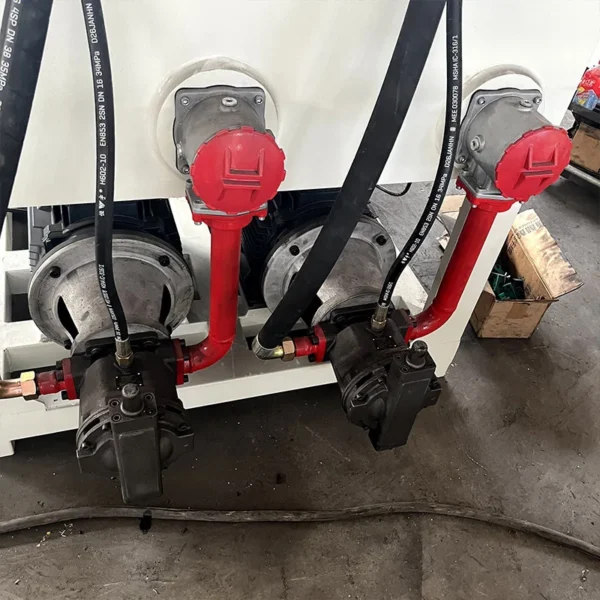

◆ Dual-motor drive
Two motors split the workload instead of one straining through every cycle, which keeps energy use down across long runs.

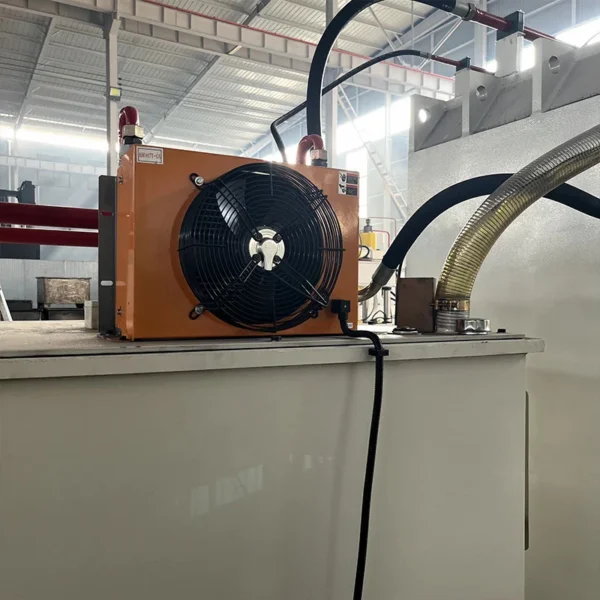

◆ Air cooling
Runs continuously without the heat buildup that forces shorter presses into rest cycles.
Where It Gets Put to Work
Shops running body panels and structural stampings usually browse this alongside our automotive line, since the synchronized dual-cylinder force is well suited to deep drawing without the tearing you’d get from an uneven single-ram stroke. Composite fabricators tend to look at it next to our composite materials equipment, since the 1600×1200mm table gives enough flat, even pressure for large lamination layups. If your team wants a broader technical grounding in how forming presses distribute load, the Britannica entry on hydraulic press technology is a solid starting point.
- Automotive sheet metal stamping
- Deep drawing & forging
- Composite lamination
- Aerospace component fabrication
- Heavy machinery parts

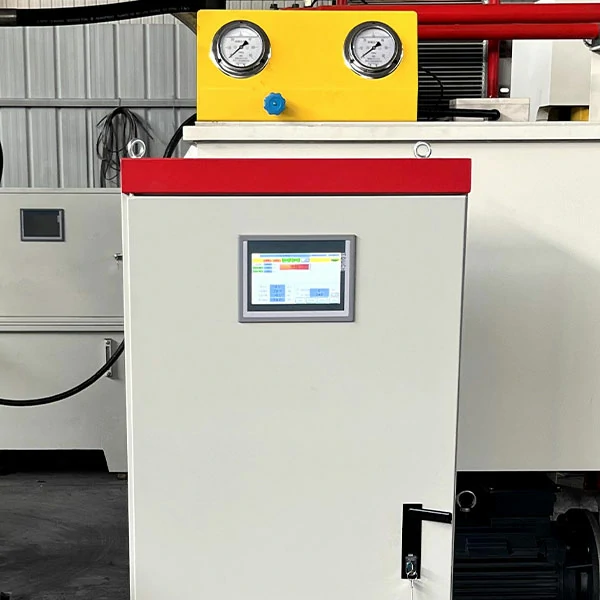

7-inch touchscreen for pressure, stroke, and fault diagnostics on the closed-loop hydraulic press.
Technical Specifications
| Rated Pressure | 1000 Tons (2,204,620 lbs) |
|---|---|
| Cylinder Configuration | Dual 500-Ton Synchronized Cylinders |
| Worktable Size | 1600 × 1200 mm (62.99″ × 47.24″) |
| Hydraulic System | Closed-Loop, Sealed Circulation |
| Cooling | Air Cooling System |
| Drive | Dual-Motor High-Efficiency Drive |
| Safety | Infrared Light Curtains + Mechanical Interlocks |

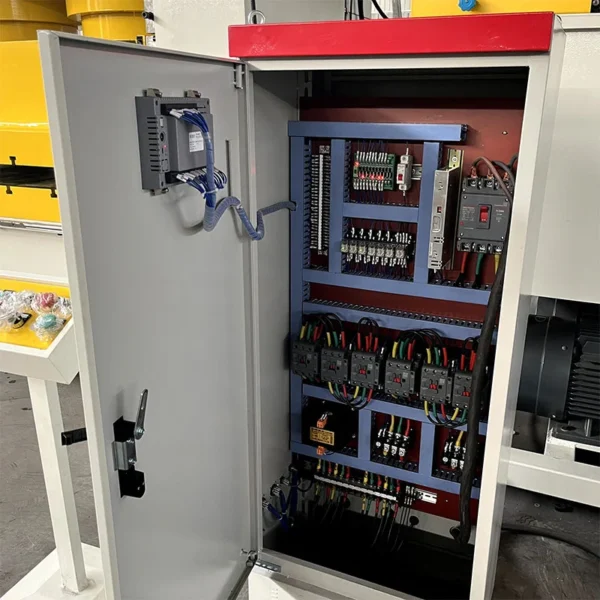

| Control System | PLC + 7-inch Touchscreen |
| Certification | CE Certified |
As a dual cylinder hydraulic press manufacturer, we size the motor output and worktable around your actual mold and tonnage requirement rather than locking you into one fixed spec sheet — send us your part drawing or cure profile and we’ll confirm configuration before quoting. More on our factory setup is on the about us page.
Get a Quote for This Press
Send your workpiece size and tonnage requirement on WhatsApp and we’ll confirm configuration and lead time within one business day.
Frequently Asked Questions
How does the dual-cylinder design keep pressure even across the table?
The two 500-ton cylinders are synchronized through the hydraulic circuit so both sides advance and hold at the same rate, which is what keeps large panels from forming unevenly on one edge.
What makes this a closed-loop hydraulic press instead of an open system?
Oil stays within a sealed circuit rather than cycling through an open reservoir, cutting leakage and keeping pressure output more consistent over long production runs.
Are the safety light curtains compliant with standard machine guarding practices?
Yes, the infrared curtains work alongside mechanical interlocks in line with common machine guarding principles outlined by bodies such as OSHA’s machine guarding guidance, and the press carries CE certification.
Can the worktable or tonnage be customized on this 1000 ton dual cylinder hydraulic press?
Yes — 1600×1200mm and 1000 tons are our standard configuration, but table size, stroke, and motor output can all be adjusted around your mold and production volume.
